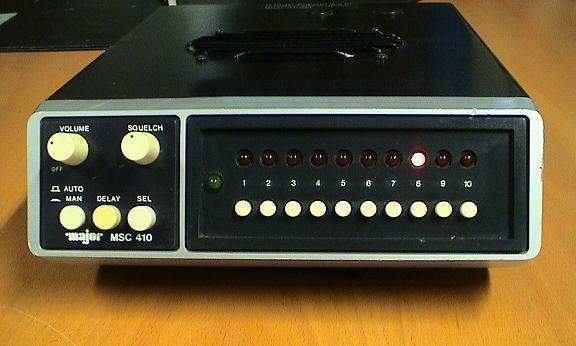

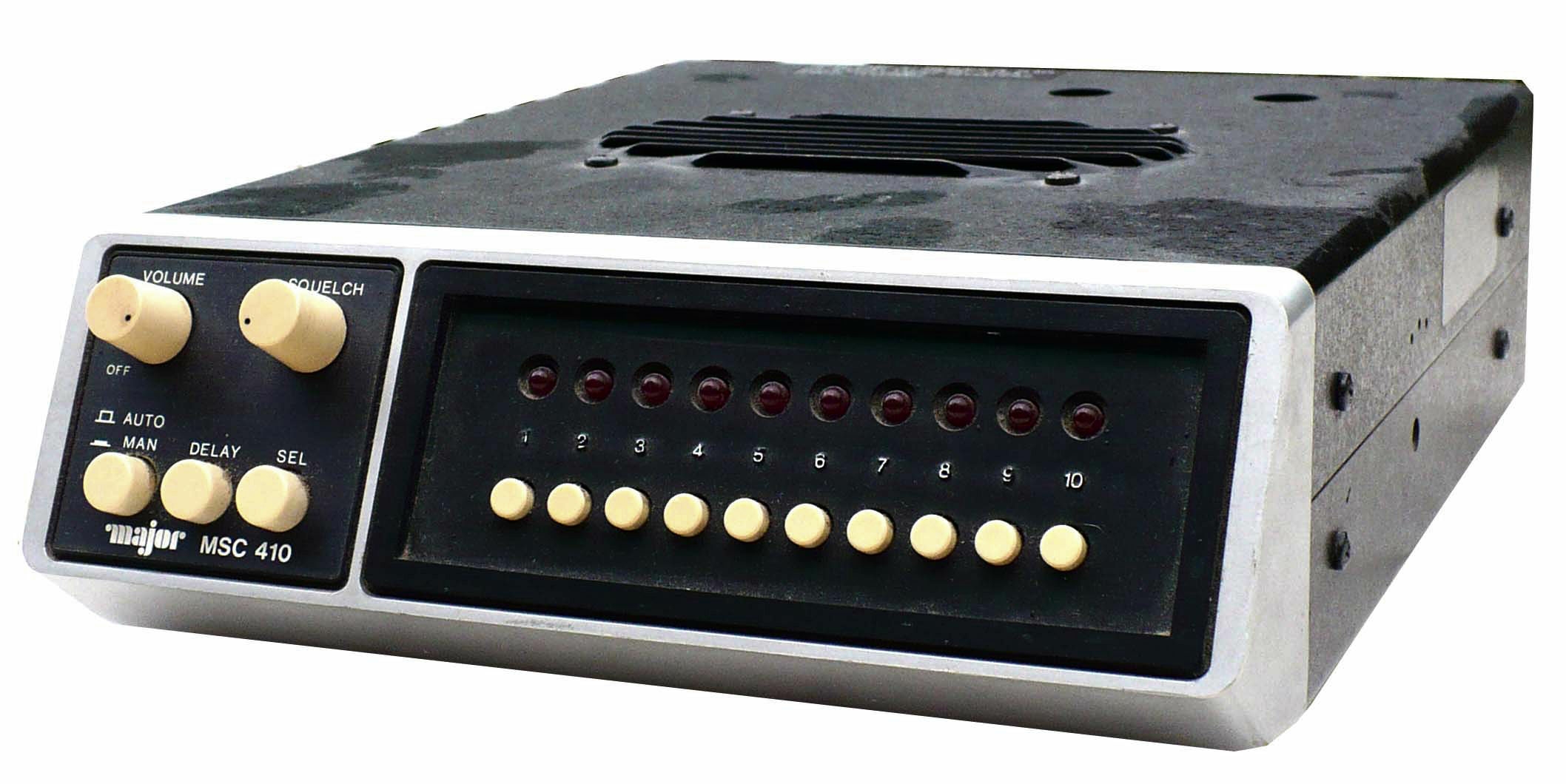

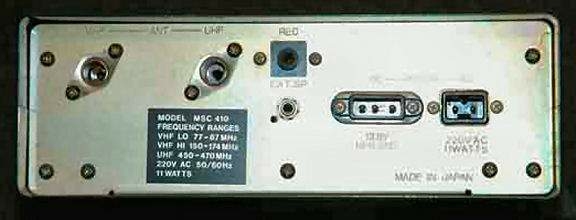

Major MSC 410
| Type: |
VHF/UHF/Receiver/Scanner |
| Frequency Range: |
77-87 / 150-174 / 450-470 MHz |
| Modes: |
FM |
| Memory Channels: |
10 (Crystals) |
| Search Banks: |
N/A |
| Priority Channels: |
N/A |
| Scan Rate: |
30 ch/s |
| Search Rate: |
N/A |
| Frequency Steps: |
N/A |
| Scan Delay: |
1 Second |
| Voltage: |
220 VAC / 13,8 V DC neg. gnd |
| Current Drain: |
11 watt |
| Aerial Input: |
VHF and UHF 50 Ohm each |
| Dimensions: |
210(W) x 75(H) x 270(D) mm |
| Weight: |
Approx 2,4 kg |
| Manufactured: |
Japan about 1980 |
| Other: |
The frequency range can be chosen per channel by using a small 3-way switch
So there are ten 3-way switches inside the receiver. |
| Related Documents: |
- WANTED ! - User Manual (??? KB) |
 |
